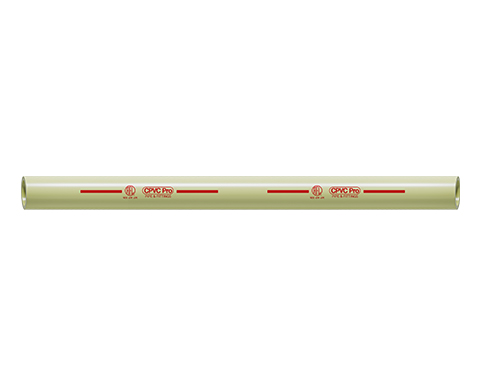

RFL CPVC Pro Pipe
RFL CPVC Pro pipe is considered the best CPVC pipe in Bangladesh for potable water distribution systems. It is made of chlorinated polyvinyl chloride (cPVC), which is more flexible than uPVC pipe and can withstand temperatures ranging from 93 to 100 degrees Celsius. CPVC piping solutions have been used for hot and cold water distribution in the United States since the 1960s, and RFL CPVC Pro pipe has a history of superior performance compared to metal and other alternative piping systems.
These pipes are easy to install and can provide solutions for a variety of settings, such as single and multi-family homes, apartments, high-rises, hotels, motels, and commercial installations. In addition, CPVC material is typically very difficult to ignite and tends to self-extinguish when not in a directly applied flame, making it a safe and reliable choice for water distribution systems.
Properties & Advantages
- Deterioration Resistance
- Less Bacterial Growth
- No Scale, Ditch, or Leach Formation
- Unaffected by Chlorine in the Water
- Low Fervid Expansion
Buy Online
Quality Assurance
Super High Performance
Extreme Heavy Duty
ISO Certified Company
Environment Friendly
Fully Factory Made
Product Specification
- Material: Chlorinated Polyvinyl Chloride (CPVC)
- Color: Off-white or light yellow
- Maximum Operating Temperature: 93 to 100 degrees Celsius (200 to 212 degrees Fahrenheit)
- Impact Strength: No break (withstands heavy impact)
- UV Resistance: Good (does not degrade under exposure to sunlight)
- Flammability: Self-extinguishing
- Standard Length: 3 meters (10 feet) or as per customer requirement
- Standard Diameter: 15mm to 200mm (0.5 inches to 8 inches)
- Applications: Hot and cold potable water distribution, industrial water treatment, chemical transport, and other high-temperature fluid handling applications.
Size Chart:
|
RFL cPVC Pipe |
||||
|
Code |
70305 |
70306 |
70307 |
70308 |
|
Size (Inch) |
1/2(15mm)X3M-SDR-13.5 | 3/4(20mm)X3M-SDR-13.5 | 1(25mm)X3M-SDR-13.5 | 1.25(32mm)X3M-SDR-13.5 |
|
Code |
70309 |
70310 |
70311 |
70312 |
|
Size (Inch) |
1.5(40mm)X3M-SDR-13.5 | 2(50mm)X3M-SDR-13.5 | 1/2(15mm)X3M-SDR-11 | 3/4(20mm)X3M-SDR-11 |
| Code |
70313 |
70314 |
70315 |
70316 |
|
Size (Inch) |
1(25mm)X3M-SDR-11 | 1.25(32mm)X3M-SDR-11 | 1.5(40mm)X3M-SDR-11 | 2(50mm)X3M-SDR-11 |
|
Code |
706169 |
706191 |
706192 |
|
|
Size (Inch) |
1(25mm)X3M-SDR-13.5 (AST) | 3" CPVC Pipe Schedule-40 | 4" CPVC Pipe Schedule-40 | |
