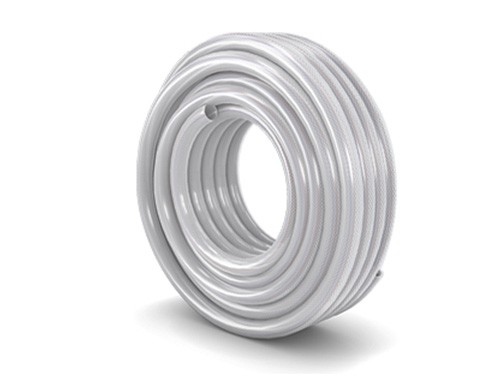

RFL PVC Braided Hose Pipe
A PVC braided hose pipe is a flexible tube made of PVC (Polyvinyl Chloride) material with a braided layer of reinforcement. The braided layer, typically made of polyester or nylon, adds strength and durability to the hose while maintaining flexibility.
It is a superior replacement to conventional rubber hoses as it is made of PVC.
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced crosswise as well as in longitudinal directions.
Features:
Leak Proof
Long lasting & maintenance free
Better Flow Characteristic
Longer service life
Application:
To convey gas, oil & water.
It is used as a high-pressure capability pipe.
Buy Online
Quality Assurance
Super High Performance
Extreme Heavy Duty
ISO Certified Company
Environment Friendly
Fully Factory Made
Product Specification
| Code | Size (Inch) | Length(Feet) | Thickness(mm) | Inner Diameter(mm) | Color |
| 985141 | 5/16'' | 164' | 1.60 - 1.90 | 7.0-7.2 | white |
| 84689 | 3/8'' | 164' | 1.80 - 2.00 | 9.5-9.6 | white |
| 84389 | 3/8'' | 328' | 1.80 - 2.00 | 9.5-9.6 | white |
| 84390 | 1/2'' | 328' | 2.00 - 2.20 | 12.1-12.3 | white |
| 985182 | 3/4'' | 164' | 1.60 - 1.90 | 18.9-19.1 | white |
| 982524 | 3/4'' | 328' | 1.60 - 1.90 | 18.9-19.1 | white |
| 84391 | 3/4'' | 328' | 2.20 - 2.40 | 18.9-19.1 | white |
| 84392 | 1'' | 164' | 2.20 - 2.40 | 25.0-25.2 | white |
| 982529 | 1.25" | 164' | 2.60-3.00 | 31.6-31.8 | white |
